3.5.4. Dimension of Installation Surface

3.5.4. Dimension of Installation Surface



Fix the swivel base for robot's installation.

Refer to [Figure 3.6] for the dimension.

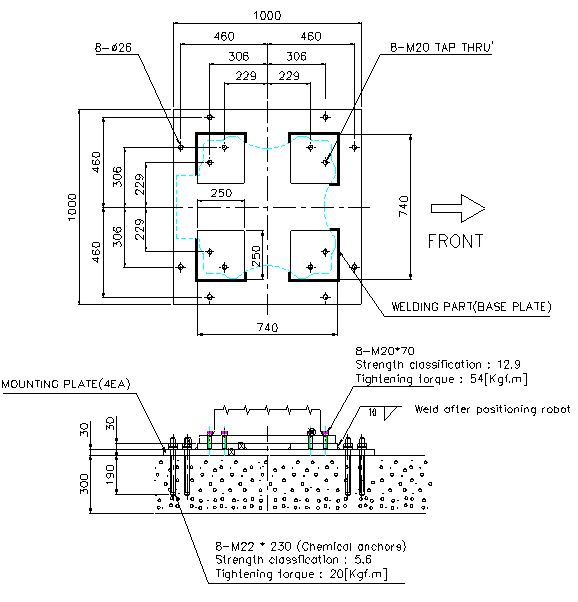

Figure 3.6 Dimension of Robot Installation
