5.1.1. S-AxisReduction Gear

5.1.1. S-AxisReduction Gear​





Attention

If grease is added without removing the outlet plug, it cause damage to the seal of reduction gear and grease will go inside the motor and may damage it. It is absolutely necessary to remove the plug.



n Grease Replacement

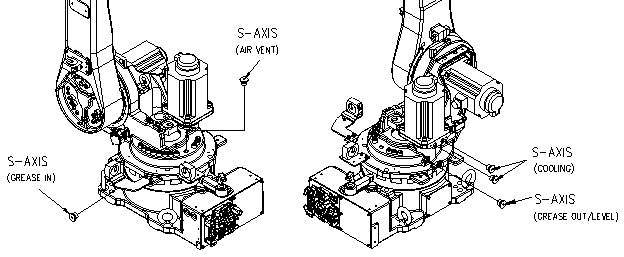

(1)   Remove the AIR VENT plug to discharge the pressure inside and close it again.

(Warning: Grease may splash because of the pressure inside. Always wear protective goggles.)



(2)   Remove the grease outlet plug.



(3)   Remove the grease inlet plug.



(4)   Use a grease gun to slowly inject the grease through the inlet.



ü  Grease type : VIGO GREASE RE0

ü  Amount of grease: 3,445cc(3,100g)



(5)   Move the S-Axis for a few minutes to eject the old grease and then add grease until the new grease appears in the outlet port. The new grease can be distinguished from the old one by color.



(6)   Clean the grease inlet with a cloth and assemble the inlet plug similar to the initial state.



(7)   Discharge the excessively injected grease.



①    Attach a plastic bag to the grease outlet.

②    With S-axis in ±45° position, carry out a test drive for 1.5 hours at 50% speed.

③    Remove the plastic bag.



(8)   Clean any grease around the outlet and close the outlet plug.
