4.3. Inspection of Main External Bolts
4.3. Inspection of Main External Bolts
The recommended bolt torque is shown in [Figure 4.1].
Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed
Table 4‑3 Inspection part for main bolts
No. | Inspection parts | No | Inspection parts |
1 | H-axis reduction gear seal bolt | 5 | ADD PIPE seal bolt |
2 | H-axis motor seal bolt | 6 | ARM PIPE seal bolt |
3 | V-axis reduction gear seal bolt | 7 | For B axis motor assembly |
4 | V-axis motor seal bolt | 8 | For End Effector assembly |

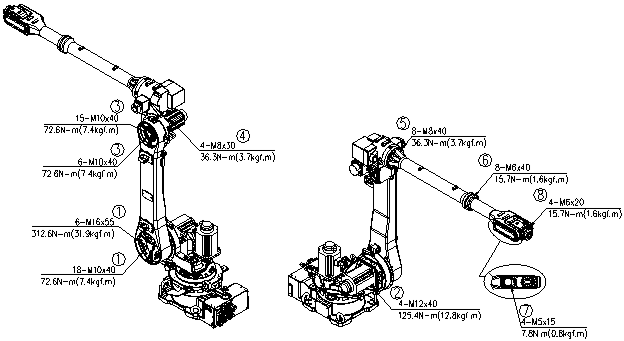

Figure 4.1 Inspection Part for Main Bolts [HH020L]
