3.3.2. Forklift use

A forklift can be used to carry the main body of the robot.

For safety reasons, please pay attention to the following procedures:

l With reference to the pictures provided, use the standard position of each model.

l Fix the robot onto a pallet and insert the forklift fork into the pallet to carry it. The pallet should be strong enough to withstand the weight.

l Carry at a slow speed.

l Follow all safety regulations.

Cautions

l Do not lean against the robot while carrying it.

l Make sure the robot does not collide with the floor while loading and unloading.

l Pay attention to the relevant safety rules while using the forklift truck.

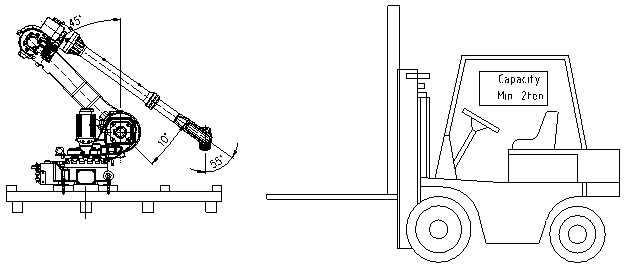

Figure 3.4 How to Transport: Using forklift [HH020L]
