3.1. Robot Component Name
3.1. Robot Component Name
Name of each part of the main body is as shown in [Fig. 3.1], [Fig. 3.2].

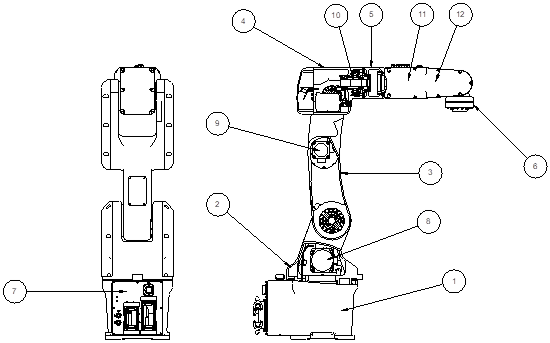

Figure 3.1 Name of Robot Components [HH007C]
Table 3‑1 Name of Robot Components [HH007C]
No. | Name of each part | No. | Name of each part |
1 | BASE BODY | 9 | V axis motor |
2 | LOWER FRAME | 10 | R2 axis motor |
3 | UPPER FRAME | 11 | B axis motor |
4 | ARM FRAME | 12 | R1 axis motor |
5 | ARM PIPE |
|
|
6 | WRIST BODY |
|
|
7 | S axis motor |
|
|
8 | H axis motor |
|
|
