2.8. Wiring and Piping Drawings for Application

2.8. Wiring and Piping Drawings for Application​



There are air unit and connector to connect the additional equipment to the robot manipulator.

Application connectors are indicated as follows.

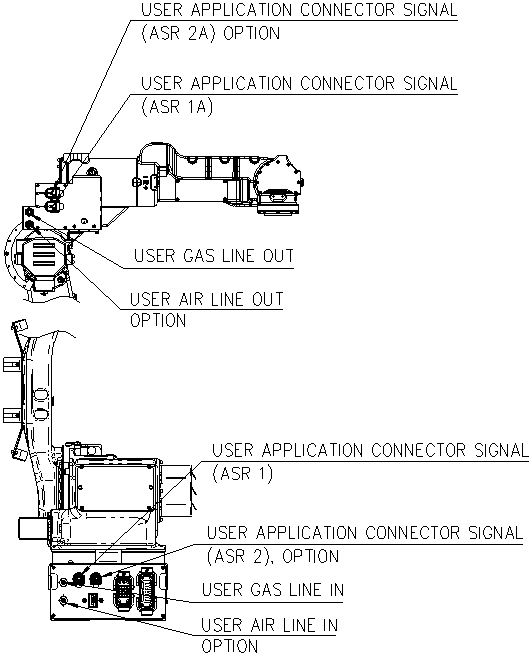

Figure 2.7Wiring and piping drawings for application: [HA006E]



 <ASR 1>

· Cable : 0.75sq * 8 c

· Connector type

: HAN 8D (M)

· Corresponding connector

: HAN 8D (F)

<ASR 1A>

· Cable : 0.75sq * 8 c

· Connector type

: HAN 8D (M)

· Corresponding connector

: HAN 8D (F)

Figure 2.8Application connector detail: [HA006E]
