3.5.3. Dimension of Installation Surface

3.5.3. Dimension of Installation Surface



Assemble the main body of the robot on the common base, Refer to the following dimensions.

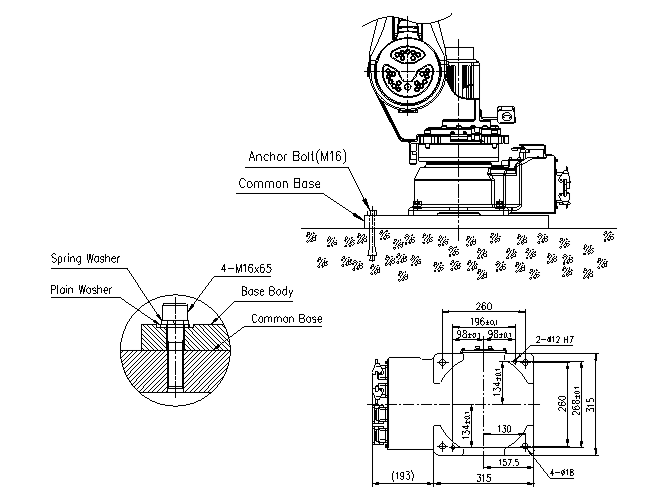

Figure 3.9Robot installation surface dimension [HA006B]

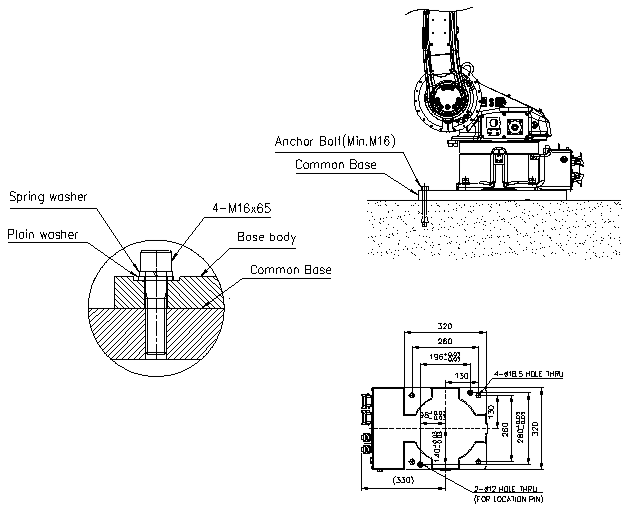

Figure 3.10Robot installation surface dimension [HA006L]
