5.1.1. S-AxisReducer

5.1.1. S-AxisReducer

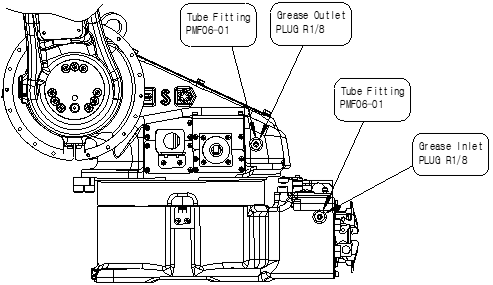

Figure 5.1 Position of Grease Inlet/Outlet on Axis-S [HA006A]

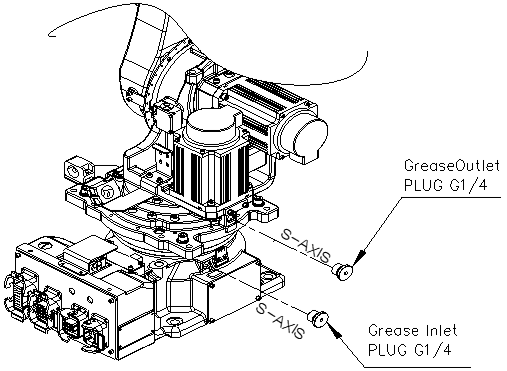

Figure 5.2 Position of Grease Inlet/Outlet on Axis-S [HA006L]



Attention If grease is added without removing the outlet plug, the grease will go inside the motor and may damage it. It is absolutely necessary to remove the plug.



n  Grease Replacement



(1)   Remove the grease outlet plug.



(2)   Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease 1)   HA006A : 500cc(450g) 2)   HA006L : 945cc(850g)



(3)   The grease replacement is complete when new grease appears in the outlet port. The new grease can be distinguished from the old one by color.



(4)   Clean the outlet with cloth and release over-injected grease.

①    Place a vinyl bag on the grease outlet.

②    Commission the Axis-S at ±45° for 1.5 hours at 50% speed.

③    Remove the vinyl bag.



(5)   Clean the greased around the outlet and assemble the seal-taped plug into its original state.



Caution If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.
