8.2.2. HA020W/HA010LW

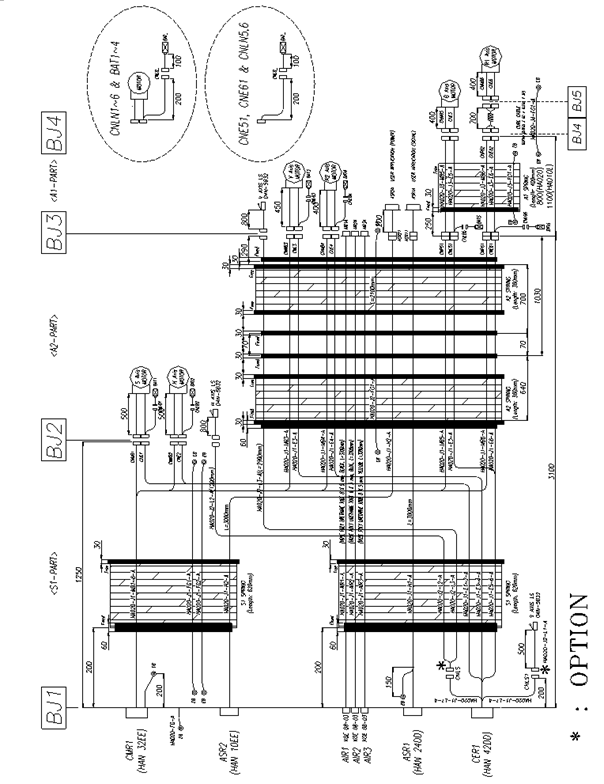

Figure 8.8 CABLE BLOCK DIAGRAM [HA020/HA010L]

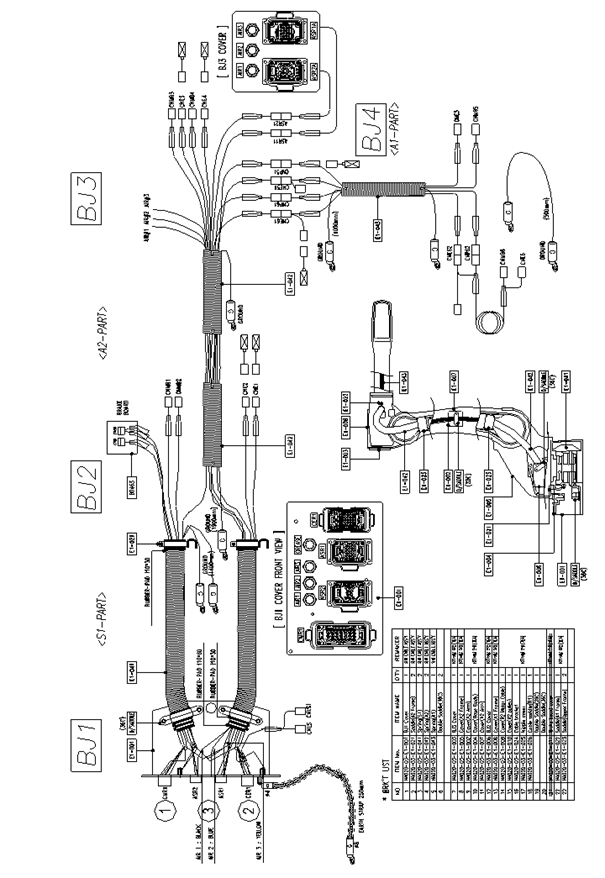

Figure 8.9 CABLE ASSEMBLY [HA020W/HA010LW]

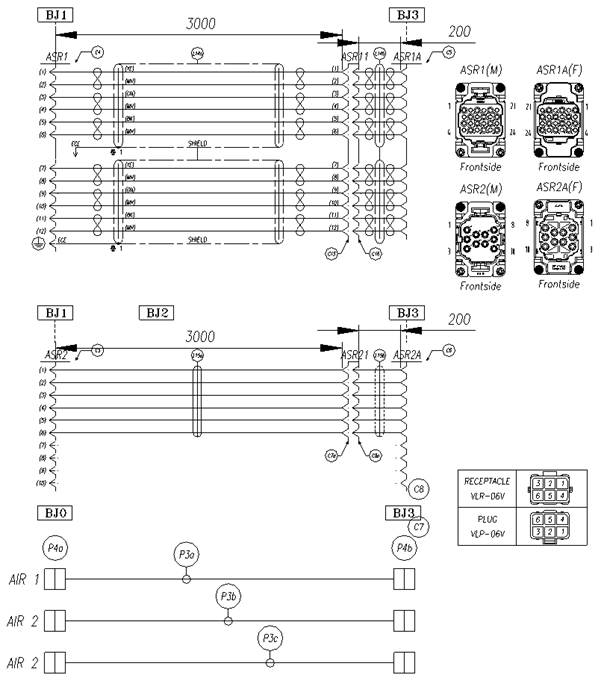

Figure 8.10 MOTOR POWER CABLE [HA020W/HA010LW]

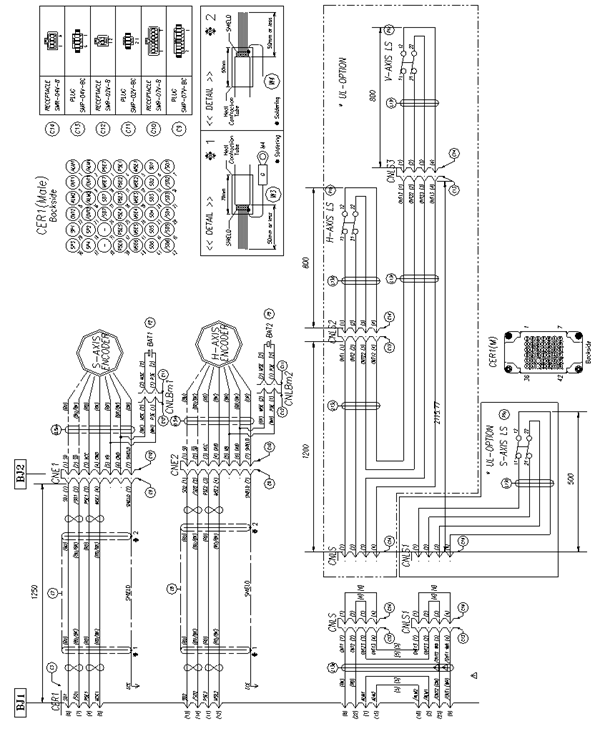

Figure 8.11 ENCODER CABLE FOR S,H AXIS [HA020W/HA010LW]

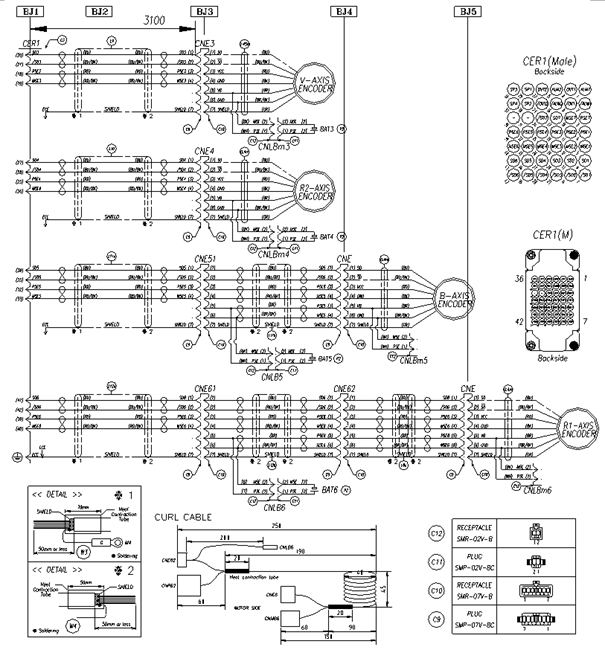

Figure 8.12 ENCODER CABLE FOR V,R2,B,R1 AXIS [HA020W/HA010LW]

Figure 8.13 ENCODER CABLE FOR V,R2,B,R1 AXIS [HA020W/HA010LW]
