10.4.5.2. Monitoring and modifying of values



The value line monitors the current value of each variable (However, it does not monitor while in the editing (* mark) mode

In the value line, press the [Enter] key and input a new value, and then press the [Enter] key to assign the newly entered value to the variable (In this process, there is no need to press the [F7: Save] button because this process is for editing the value, not the variable type.)

Pose and shift variables can be edited easily in this way. However, considering that in this method, the values of pose and shift constants need to be typed in directly, it may be difficult to convert coordinates or modify “config.”. Place the cursor on the pose or shift variable line and press the [QuickOpen] key. Then, the pose dialog or the shift dialog will be displayed, allowing easy editing.

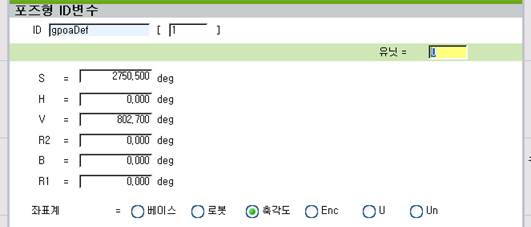

Figure 10.3 Variable dialog box
