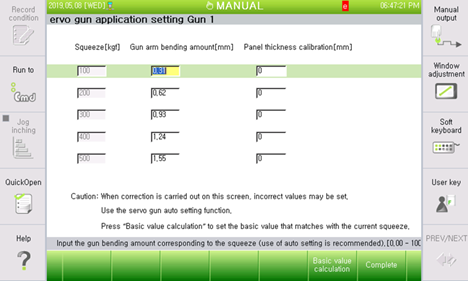

5.2.1.2. Servo gun application setting

5.2.1.2. Servo gun application setting



(1)   Gun arm bending (mm)

Set the gun arm bending for the squeeze force set on the left. As it is difficult to perform measurement and manually input the values, it is recommended to use the servo gun autosetting function. If you press “[F6] Basic value calculation,” the basic value of 0.31 mm per 100 kgf will be set.

(2)   Panel thickness compensation (mm)

Set the panel thickness compensation for the squeeze force set on the left. As it is difficult to perform measurement and manually input the values, it is recommended to use the servo gun autosetting function.



Caution) As far as the “gun arm bending compensation” and “panel thickness measurement compensation” are concerned, it is recommended to use the automatic setting because it is difficult to perform measurement and manually input the values.

The “gun arm bending compensation value” is a value used instead of the “gun arm bending / 100 kgf [mm]” among servo gun parameters. If the “gun arm bending compensation” is set, the “gun arm bending / 100 kgf [mm]” that is set will not be used. On the contrary, if the “gun arm bending compensation” is not set, the “gun arm bending / 100 kgf [mm]” will be used.
