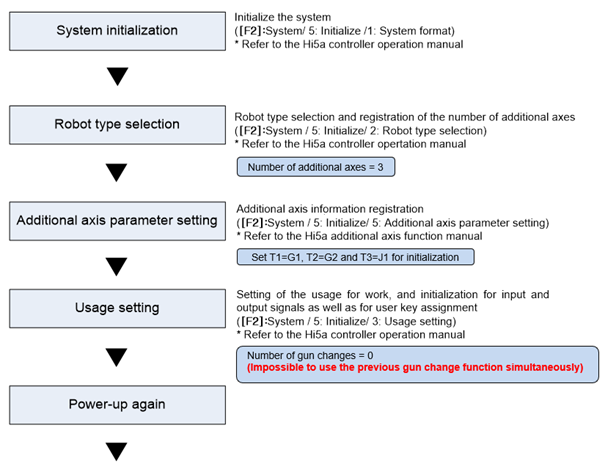

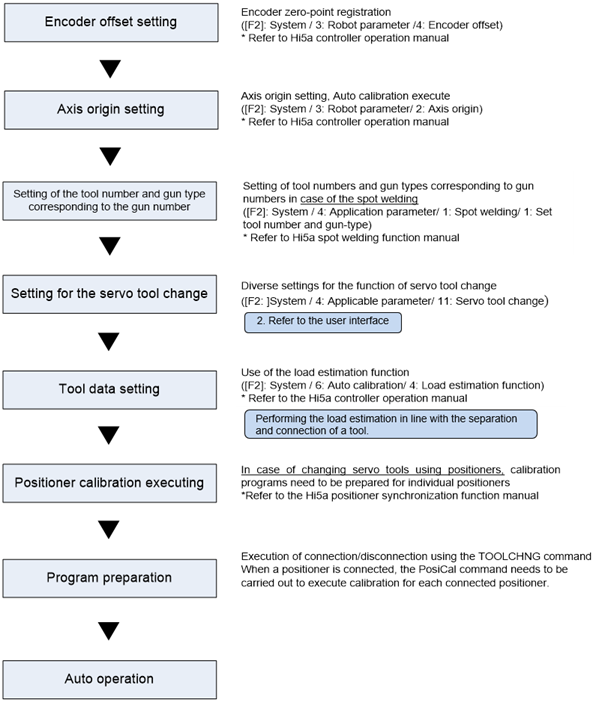

1.3. Operation sequence

※ Setting of the tool number and gun type corresponding to the gun number (To be set only in case of spot welding)

Designate all the tool numbers, additional axis numbers and Welder numbers corresponding to individual gun numbers.

Can only set the servo tool parameter in the servo tool change for the gun number set in this item.

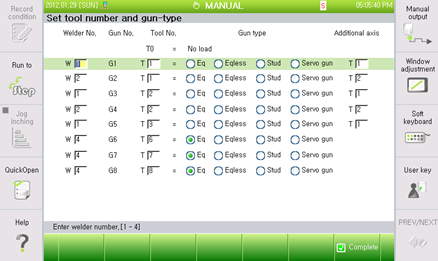

Figure 1.3 Setting of Tool Numbers and Gun Types Corresponding To Gun Numbers
