3.2. RAPIEnet Slave Diagnosis

3.2. RAPIEnet Slave Diagnosis



In the RAPIEnet slave setting and diagnosis screen, you can diagnose the communication, setting status, and device status.

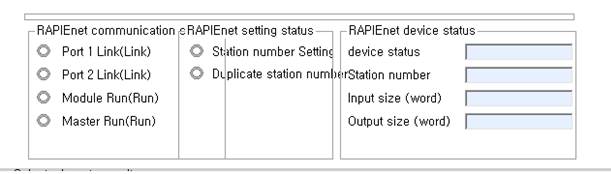

Figure3.3RAPIEnet Slave Diagnosis Screen



(1)    RAPIEnet Communication Status



Table 3‑2 RAPIEnet Communication Status

Item	Status	Description
Port 1 Link	Off	Ethernet not linked
	Green	Ethernet linked
Port 2 Link	Off	Ethernet not linked
	Green	Ethernet linked
Module Run	Off	RAPIEnet daughter board in abnormal operation
	Green	RAPIEnet daughterboard in normal operation
Master Run	Off	RAPIEnet master stop
	Green	RAPIEnet master run



(2)    RAPIEnet Setting Status



Table 3‑3RAPIEnet Setting Status

Item	Status	Description
Setting of the Station No.	Off	Node number not valid - Master and station numbers not matching
	Green	Station number normal
Duplication of Station No.	Off	Station number not duplicated
	Red	Station number duplicated



(3)    RAPIEnet Device Status



Table 3‑4RAPIEnet Device Status

Item	Display	Description
Device Status	Not Mounted	RAPIEnet communication board not mounted
	Off	RAPIEnet slave use in Off status
	Reset	RAPIEnet communication board resetting in progress
	Initialize	RAPIEnet communication initialization in progress
	Error	RAPIEnet communication error
	Malfunction	RAPIEnet communication board malfunctioning
	Initialization Failure	RAPIEnet communication initialization failure
	Normal	RAPIEnet communication normal
Station No.	1–119	Display of the RAPIEnet daughterboard station number setting value
Input Size	Word Count	Size of the data being exchanged with the RAPIEnet master
Output Size	Word Count
