1.4. Hi5a CSP+ File

1.4. Hi5a CSP+ File



Installing theHi5a BD525 CC-Link IE Field Slave CSP+ file will make it possible to set the network in a graphic environment.

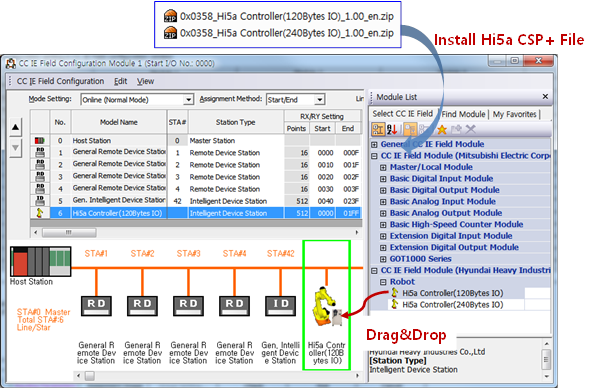

Figure 1.2CC-Link IE Network Setting



The BD525 CC-Link IE Field Slave can be used with 120 bytes or 240 bytes respectively for input and output depending on the setting. Therefore, it is required to install two CSP+ files or install the CSP+ file that matches the setting before using the slave.





Table 1‑4 CSP+File

Data mapping	CSP+ file	Module to use
RX/RY/ RWr/RWw=FB5	0x0358_Hi5a Controller(120Bytes IO)_x.xx_en.zip	Hi5a Controller(120Bytes IO)
RX/RY=FB5 RWr/RWw=FB3	0x0358_Hi5a Controller(240Bytes IO)_x.xx_en.zip	Hi5a Controller(240Bytes IO)





The Hi5a BD525 CC-Link IE Field slave CSP+ files can be downloaded from the following website.Click on FieldbusConfig on the website and download and decompress the file. Then, use the CSP+ file in the [BD525 CC-Link IE Field Slave CSP File] folder.



l  Korean:http://www.hyundai-engine.com/korean/robot/robot06.asp

l  English:http://www.hyundai-engine.com/robot/robot06.asp

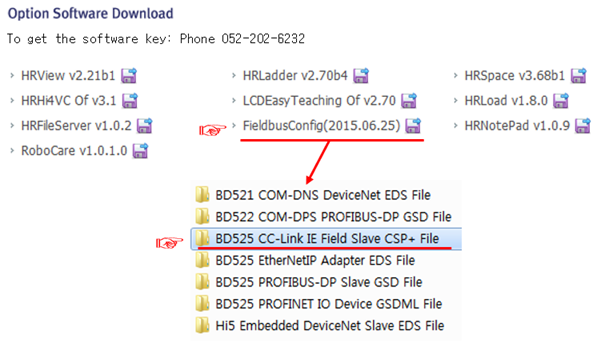

Figure 1.3 CSP+ File Downloading





Refer to 3.3 Example of CC-Link IE Field Setting for details on installing CSP + files.
