1.3. Appearance of the BD525 board​

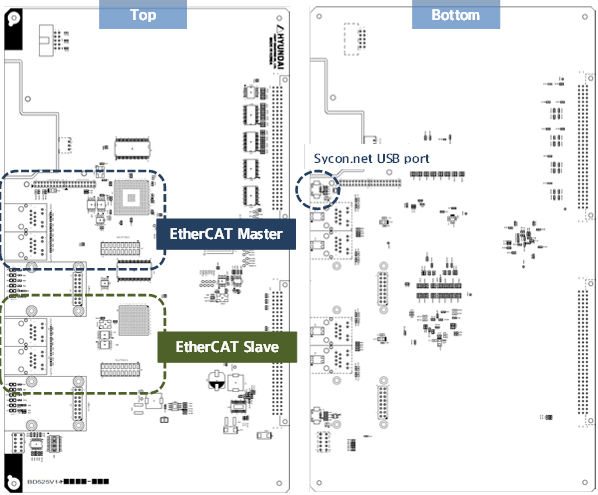

Figure 1.1 BD525 communication board



As the BD525 multi-protocol communication board can support industrial communication of up to three channels, including a CC-Link IE Field slave, a fieldbus or real-time Ethernet master, and a slave, at the same time. The board will be supplied after being assembled to include necessary channels.



BD525 has 2 RJ45 connectors for EtherCAT Master and Slave communications with a USB connector in the back to access the EtherCAT master setting software, Sycon.net.
