3.1. Overview



When teaching of an arc welding operation program needs to be performed, not only the welding related conditions, such as voltage and current, but also details of the arc welding functions such as weaving and retry/overlap and characteristics of the welder, should be set. Additionally, not only in the arc welding, but also in general cases that would used a robot, it may be required, in some cases, to check the information (such as coordinates and pose) of the position not only of the steps set through teaching, but also of the auxiliary points. The arc welding condition and the position information of the steps and auxiliary points are managed inside the controller in the form of a file, meaning that it would not be easy to edit them. That is why a function to help edit those files easily and fast is provided.



Quick Open is a function that will make it possible to set the arc welding conditions or check and edit the information of the steps and auxiliary points by using a key once without going through inconvenient operation.



Here, we take the case of editing the welding start condition, as an example. While the cursor is on the ARCON command that is for the Arc On function, if the user presses the [Quick Open] key, the screen will display the content that matches with the number of the condition, among those for starting welding, that is being used by the current command. On this screen, it is possible to check or change the details of the welding start condition. It is also possible to shift to other condition files that are related to the relevant condition file.



As explained above, this function will make it possible to check and change, easily and fast, relevant details of a condition file or a step position in relation to a specific command.

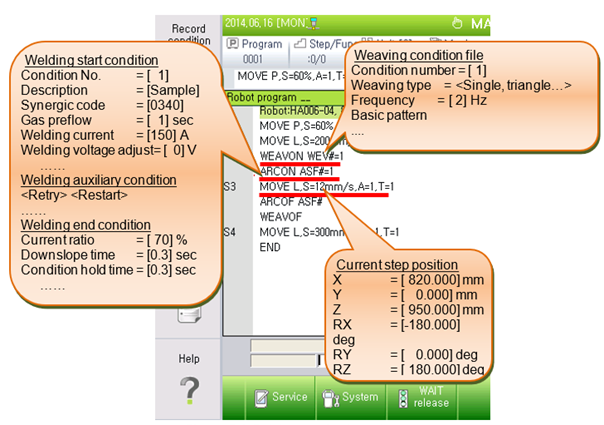

Figure 3.1 Quick open in the robot program



Clicking the [Quick Open] key in certain commands displays relevant files or details on the screen. After saving the changed content in a file, if it is required to end the process, the <Complete> key needs to be pressed. If required to end without saving, the <ESC> key needs to be pressed.
