3.1.1. Main screen configuration​

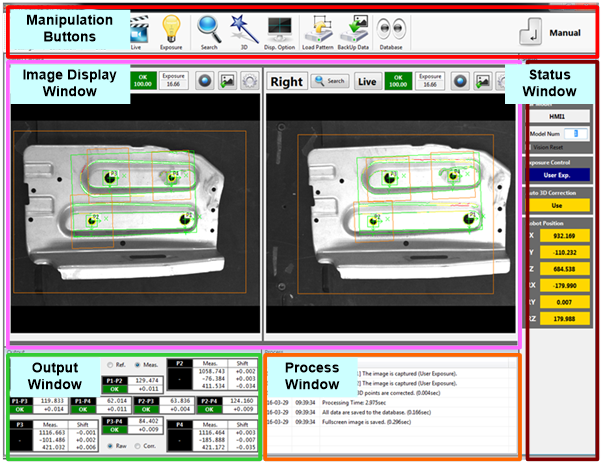

If the serial key is inputted correctly after executing the program, the following screen will be displayed. The screen of the HRVision 3D-Stereo consists of a total of five windows, and individual programs or setting windows will be displayed according to each menu of the operation program.





The key function of each window is as follows.

Manipulation Buttons

Provides menus for the operation of the HRVision 3D-Stereo such as various settings, image acquisition, calibration, inspection, and auto operation

Image Display Window

This displays the current live or grabbed image.

Process Window

This displays the communication details with the Hyundai Robot, various status display, progress details etc.

Status Window

Displays the results of recognition and the state of communication

Output Window

Displays the 3D position measurement results of the four points of the reference workpiece and the current workpiece, as well as their inter-region distance.
