The electrical module plays a role of opening/closing and distributing various electric powers supplied to the controller. The following picture shows the interior and exterior of the electrical module equipped with various connectors and fuses.

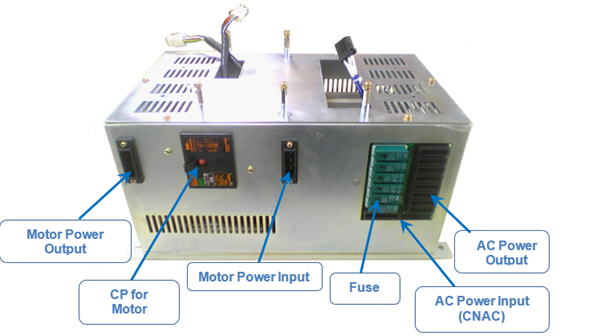

Figure 4.57 Electrical Module

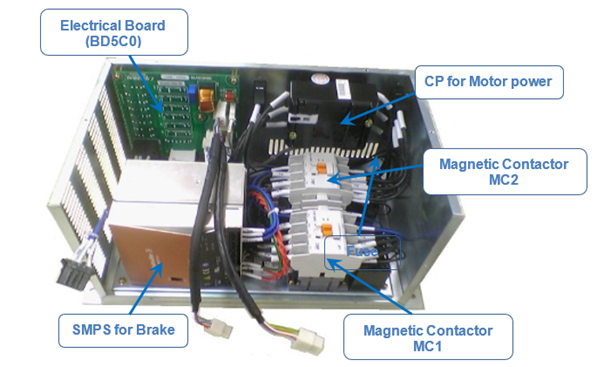

Figure 4.58 The Interior of Electrical Module

The following power flow chart shows the opening/closing of the 3-phase AC power for motor power supply, generation of brake power, AC control power such as fan operation, and the distribution of SMPS power for DC device power supply. Each power supply is equipped with a circuit breaker or fuse to protect components from over current. The electrical board (BD5C0) is used to minimize the use of the cables used for the distribution of power.

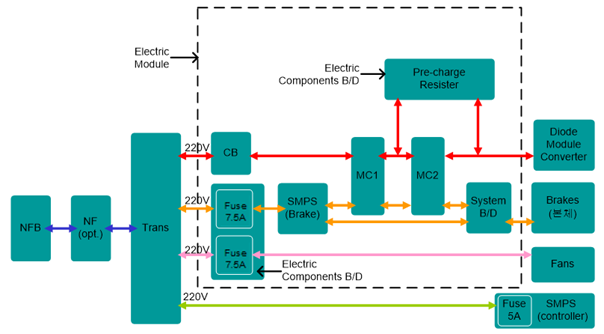

Figure 4.59 Power system of controller Hi5a





Table 4‑62 The Sorts and Uses of Fuses in the Electrical Module

Name

Use

Spec.

F1, F2

Overcurrent Protection Fuse of the Electrical Control Power (AC220V)

AC220V 7.5A

F3, F4

Overcurrent Protection Fuse of the SMPS Power (AC48V)

AC48V 10A

F5, F6

Overcurrent Protection Fuse of the Brake SMPS Power (AC220V)

AC220V 7.5A
