3.6.3. Dimension of Controller​

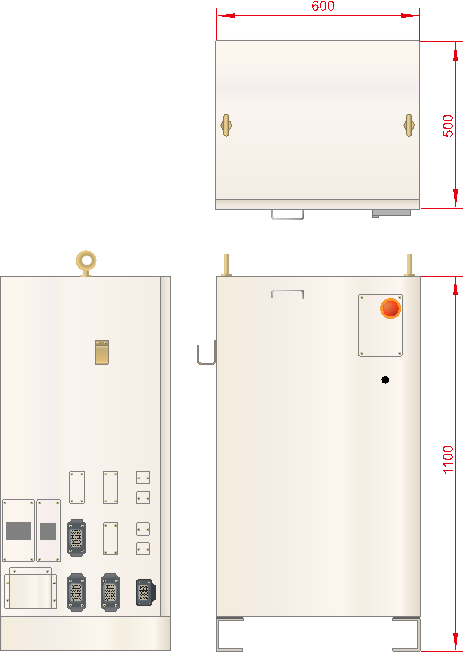

Figure 3.17Dimension of Hi5a-C3*/C4* Controller (Unit: mm)

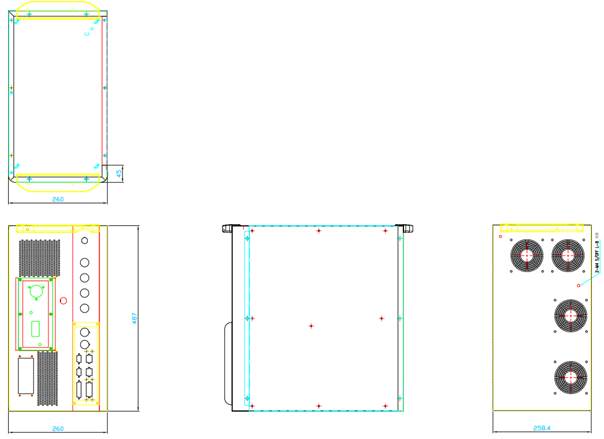

Figure 3.18Dimension of Hi5a-C5*/C6* Controller (Unit: mm)

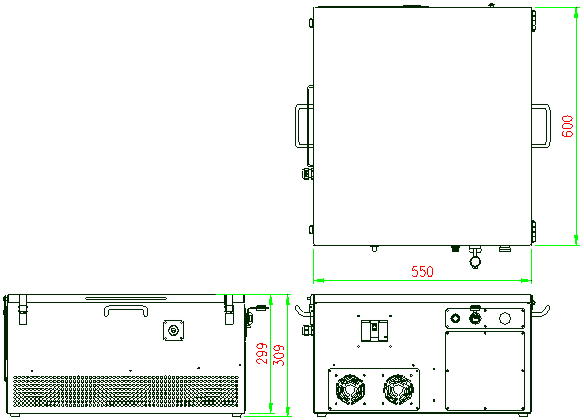

Figure 3.19Dimension of Hi5a-S* Controller (Unit: mm)

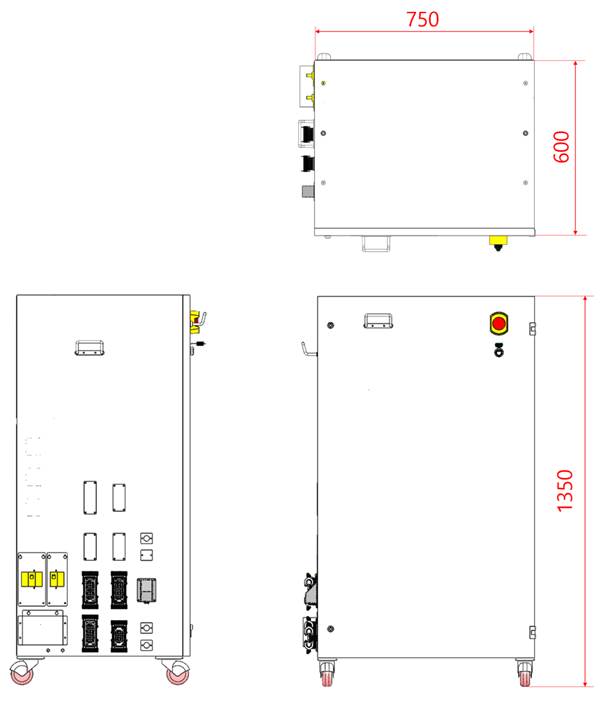

Figure 3.20Dimension of Hi5a-S20 Controller (Unit: mm)





Figure 3.21Dimension of Hi5a-S10 Controller (Unit: mm)





Figure 3.22Dimension of Hi5a-P10/P20 Controller (Unit: mm)









Figure 3.23Dimension of Hi5a-T10 Controller (Unit: mm)
