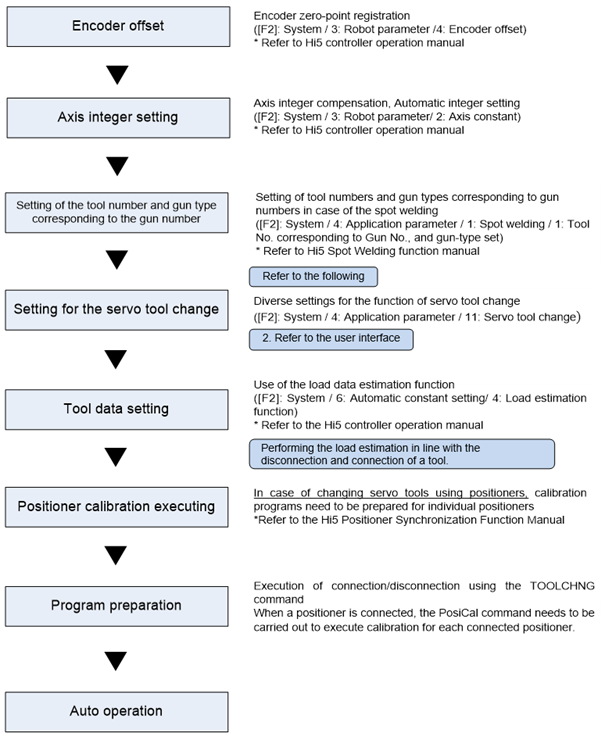

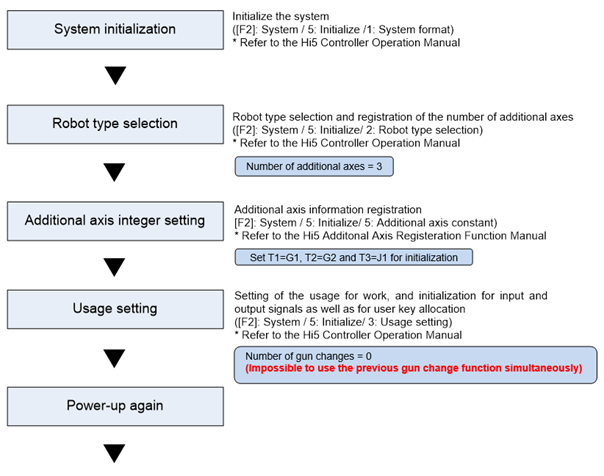

1.3. Operation sequence

※ Setting of the tool number and gun type corresponding to the gun number (To be set only in case of spot welding)

Designate all the tool numbers, additional axis numbers and welding machine numbers corresponding to individual gun numbers.

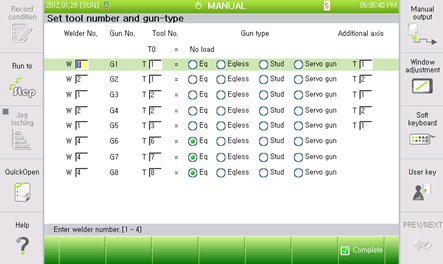

Figure 1.3 Setting of Tool Numbers and Gun Types Corresponding To Gun Numbers

Table 1.2 Examples of Setting of Tool Numbers and Gun Types Corresponding To Gun Numbers

1.3. Operation sequence​
