1.1.  What is multi (servo) tool change?

1.1.  What is multi (servo) tool change?



It refers to an activity in which a robot changes tools, which are equipped with more than two servo motors (Such as jigs, positioners, and servo guns), automatically by using the tool changer (ATC) when it comes to the tools

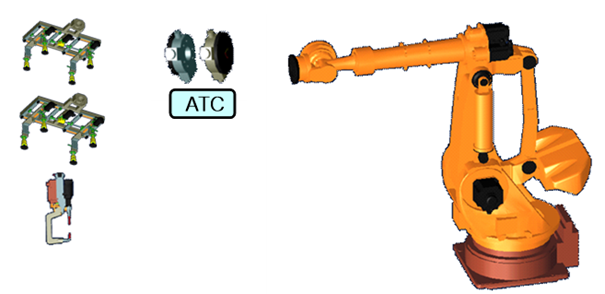

Figure 1.1 Servo Tools and Robot



In this manual, the explanation will be given based on the following system. Considering that the systems to be provided on individual sites could be different form this system, the operator on each site is required to refer to this manual in a way that is suitable for the system on the given site.



Specification of the system to handled in this manual

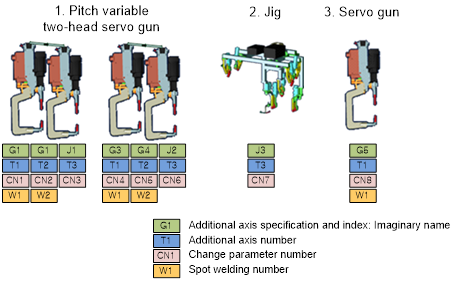

Figure 1.2 Kinds of Servo Tool Handled in the Manual



Essential manuals



(1)    Hi5 Controller Operation Manual

(2)    Hi5 Controller Additional Axis Function Manual

(3)    Hi5 Controller Positioner Synchronization Function Manual

(4)    Hi5 Controller Spot Welding Function Manual
