2.1.2. Terminal blocks (TBCV1, TBCV2)
2.1.2. Terminal blocks (TBCV1, TBCV2)

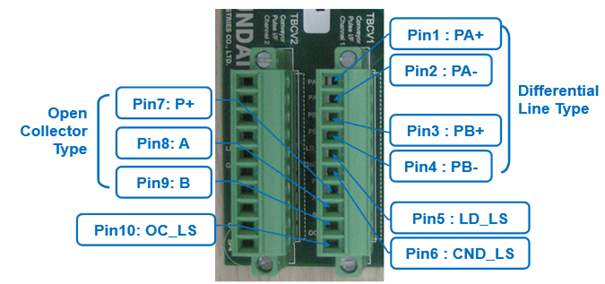

The following figure shows the connection specifications for the terminal blocks that are to be connected to the conveyor I/F board and external units.
Terminal | PIN | Explanation | Input specification |
PA+,PA- | 1, 2 | Line driver A phase pulse input | 0 ~ 5V, 100kHz or below |
PB+,PB- | 3, 4 | Line driver B phase pulse input | 0 ~ 5V, 100kHz or below |
LD_LS | 5 | Line driver Workpiece detection limit switch input | 0 ~ -30V |
GND_LS | 6 | Line driver Power GND input | 0V |
P+ | 7 | Open collector Power input | 20 ~ 30V |
A | 8 | Open collector A phase pulse input | 0 ~ -30V, 100kHz or below |
B | 9 | Open collector B phase pulse input | 0 ~ -30V, 100kHz or below |
OC_LS | 10 | Open collector Workpiece detection limit switch input | 0 ~ -30V |
