3.1.1. Hi5 controller side setting

3.1.1. Hi5 controller side setting

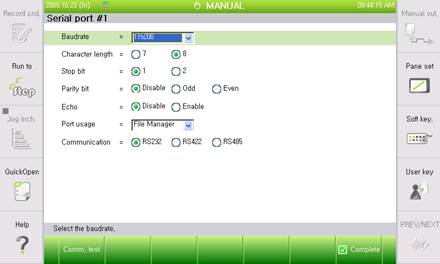

(1)   Enter 『[F2]: System』→ 『2: Control parameter』→ 『3: Serial port』 → 『1: Serial port #1』(or, 『2: Serial port #2』) screen from teach pendant of Hi5 controller as [Figure 3.1]. Select baudrate and set character length, stop bit, parity bit, echo, port usage and communication type as the picture



Figure 3.1 Empty ladder document



(2)   Red square on the left side of Rung is a sign indicating that it is a selected box. Rung or command can be selected by clicking it with the left button of mouse. Number “0001” is Rung No. and it is incremented by 1 whenever Rung is added.
