3.2. Shortcut key

3.2. Shortcut key



Designate a shortcut key when required to execute HMI on an arbitrary screen without entering the applet screen.

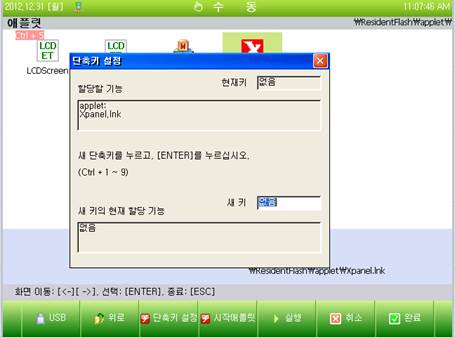

Figure 3.4 Shortcut key setting dialog box



In the applet screen, press the『[F3]: Setting a shortcut key』. The shortcut key setting dialog box will then show up. Press the desired shortcut key and set it to “New key.” Available shortcut keys are CTRL + 1–9. After leaving the dialog box by pressing the [Enter] key, users must press the 『[F7]: Complete』button to save the settings.





Figure 3.5 Shortcut key set



The HMI drawing screen will appear when the set shortcut key on the arbitrary screen of the teaching pendant is pressed.
