5.2. Assignment of output signals related to communication errors



Setting can be made in a way that the designated hard-wired output signal can be turned on when an EtherNet/IP communication error occurs.



(1)   Select 『[F2]: System』→ 『2: Control parameter』 → 『2: Input/Output signal setting』 → 『4: Output signal assign』.



(2)   After shifting using the 『[F4]: Previous』 or 『[F5]: Next』 key, enter the desired signal number in the “Fieldbus error” section, and then save the information using the 『[F7]: Complete』 key.

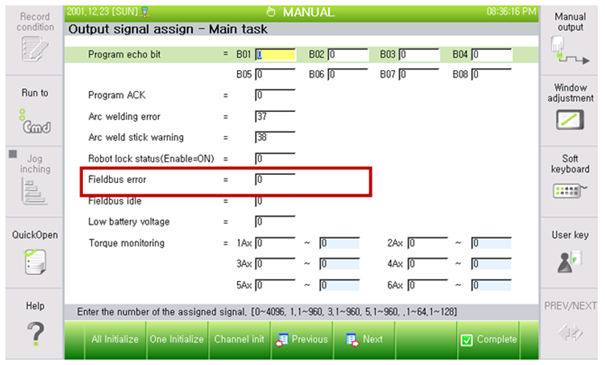

Figure 5.1 Communication error output signal assignment
