2.2. Controller setting



This sets the communication and robot number etc. for cooperation control of the controller.

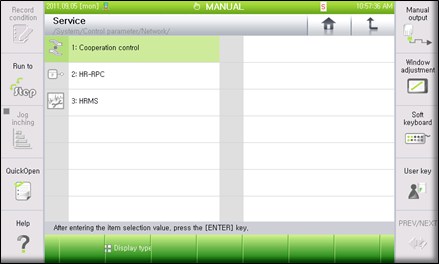

(1)   Select 『[F2]: System』 → 『2: Control Parameter』 → 『9: Network』→ 『3: Service』 in the manual mode.

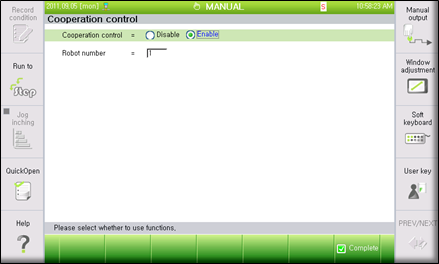

(2)   Select 『1: Cooperation Control』.





(3)   The above parameter is to be used for the following purpose.



n Cooperation control function <Disable. Enable>: Select whether to use the cooperation control function.

n Robot number: Set the robot number. <1~4>

The robot number is a number for recognizing its controller on the network connected through the cooperation control. In case of the Hi5 controller, up to 4 robots can be configured in the cooperation network. Be careful not to allow the robot number not to be duplicated while setting.



Caution



l When it comes to the cooperation control functional, only the HiNET communication should be applied for special robots and the robots whose degree of freedom is 6 or lower, the COWORK command can not be used.

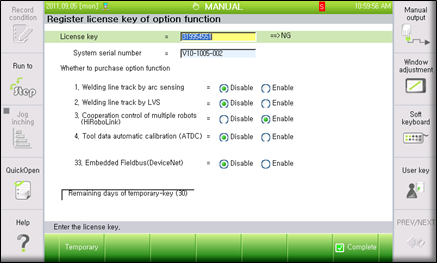

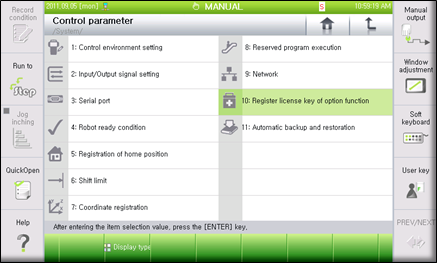

l The cooperation control is an optional item. In order to use the control COWORK command, the license key should be registered. While the temporary key can be used for one month, it is required to contact the company if you have any question if you want to use the key for a longer period than that. (『[F2]: System』 → 『2: Control Parameter』 → 『10: Register license key of option function』)
