2.2. Welding current input port assignment



To detect the current during arc welding, the analog port number connected to the arc welding option board (BD584) for the output current from the welding current detection device must be designated.

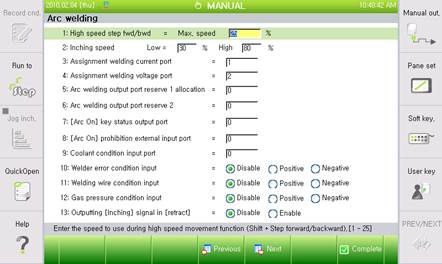

(1)   Select 『[F2]: System』 →『4: Application parameter』 → 『2: Arc welding』 from manual mode.





(2)   You can set the welding current input power with item #13 from the above menu. If 『Arc sensing = <Enable>』in the arc sensing condition to be described later and the assigned value is 0, then 『E1296 Allocate welding current input port.』will be displayed and the unit will stop with an error.
