2.1. Settings

Open menus as follows: [F2: System] – 2: Control Parameter - 11: Screens of Automatic Backup & Recovery.

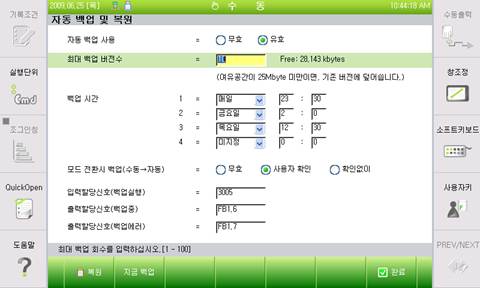

Figure 2.1 Screen of an Automatic Backup and Recovery

If the user presses the (F2: BackUp Now) key, a backup is immediately performed regardless of the settings. If the user presses the 〔F2: Completed〕key after setting the items on the screen, the set values are saved and applied. Each item means as follows.

Table2‑1 Automatic Backup Setting Items

Item	Description		Note
Use of an automatic backup	Invalid: turn off the automatic backup Valid: turn on the automatic backup		-
Max number of backups	Set the maximum number of backup points to manage. If the number is over the designated number, the oldest backed-up point is removed during the backup operation.		1~100
Backup time	Set the backup to be automatically performed at a specific time everyday or on a specific day. A maximum of 4 schedules may be input. Select the unused schedules as undesignated.		00:00 ~ 23:59
Backup during mode conversion (Manual to Automatic)	The moment a manual mode changes into an automatic, select whether to perform the backup.		-
	- Invalid:	Do not perform the backup
	- User check:	A dialogue box pops up to ask whether the user wants the backup. If the user answers “Yes”, the backup is run.
	- Without check:	Without any display of dialogue boxes for the user check, immediately the backup is run.
Assigned input signal (backup in operation)	When the designated input signal is turned on, the backup is run.		-
Assigned output signal (backup in progress)	The designated output signal is turned on during the backup operation.		-
Assigned output signal (errors in backup )	When an error in the backup operation occurs, this signal is turned on. If the user presses the [Reset] key twice or [Reset] [0] [ENTER] in turn, it is cleared.		-

The examples of inputting the set values of the assigned signals are as follows.

Table 2‑2 Methods of Setting Assigned Signals

Types of signals	Example of settings	Results of settings
Logic signal (PLC ON) Hard-wired signal (PLC OFF)	135	135 (No. 135 signal)
Field bus	5.220	FB5.220 (CC-Link I/O No. 220 signal)
Built-in field bus	.35.94	FN35.94 (No. 94 signal of No. 35 node)
