3.7.1. Connection of Teach Pendant
3.7.1. Connection of Teach Pendant
Connect the cable connector of Teach Pendant to CNRTP receptacle in the side of controller.

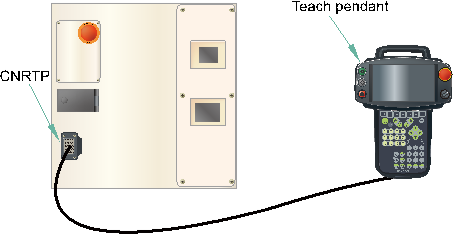

Figure 3.19 Hi5-C20 Connection of Teach Pendant

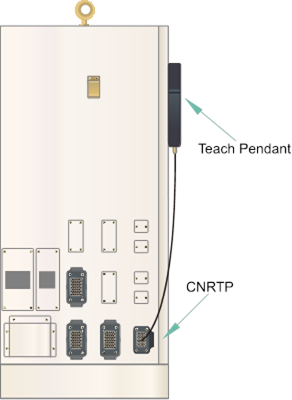

Figure 3.20 Hi5-C10 Connection of Teach Pendant

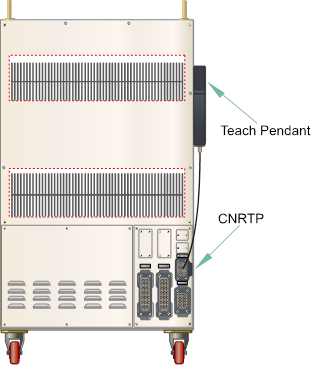

Figure 3.21 Hi5-N* Connection of Teach Pendant
