3.5.3. Dimension of Installation Surface

3.5.3. Dimension of Installation Surface



Assemble the base body of the robot on the common base, Refer to the following dimensions.

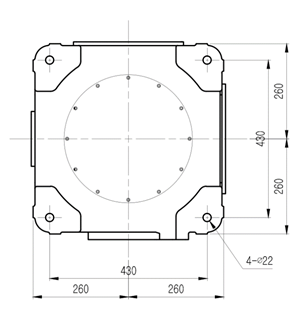

Figure 3.6 Dimension of Robot Installation
