4.1.1. T Axis Reducer

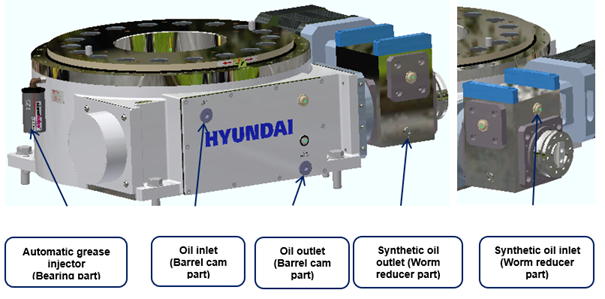

Figure 4.1 Oil Inlet and Outlet

n Replacement of the automatic grease injector

① Replace the automatic grease injector according to the replacement cycle (every 12 months).

② Replacement method

A. Dismantling: Dismantle it by rotating it counterclockwise without using a tool.

B. Setting: Set the injection cycle to 12 months using the wrench on the bottom of the new

grease injector.

C. Installing: Install it by rotating it clockwise.

ü Grease type: Multipurpose grease

ü Automatic grease injector type: SIMALUBE 125, SL01

ü Grease injection amount: 125 cc (Injection cycle 12 months: cc/day 0.08)

Caution

If you inject the oil without removing the outlet plug, the oil may enter the motor, causing damage to the motor. You must remove the plug.

n Replacement of the oil and synthetic oil

① Remove the outlet plug.

② Inject the oil through the inlet.

③ Inject the new oil until it comes out of the outlet. The new oil can be identified by color.

④ Clean the outlet with a cloth and assemble the plug, which is wrapped with the seal tape, back into its original position.
