4.3. Inspection of Main External Bolts​



The recommended bolt torque is shown in [Figure 4.1].

Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed.



Table 4‑3 Inspection part for main bolts

No.

Inspection parts

No

Inspection parts

1

H axis reducer assembly bolt

7

ARM PIPE seal bolt

2

H axis motor assembly bolt

8

R2 axis reducer assembly bolt

3

V axis reducer assembly bolt

9

Grip assembly seal bolt

4

V axis motor assembly bolt

10

B axis reducer assembly bolt

5

Upper plate of gas seal bolt

11

R1 axis reducer assembly bolt

6

Wrist axis motor seal bolt

12

End effect seal bolt

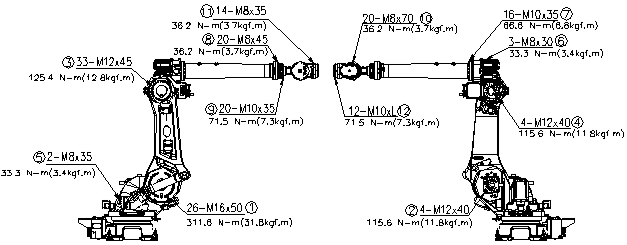

Figure 4.1Inspection part for main bolts [HS200L]

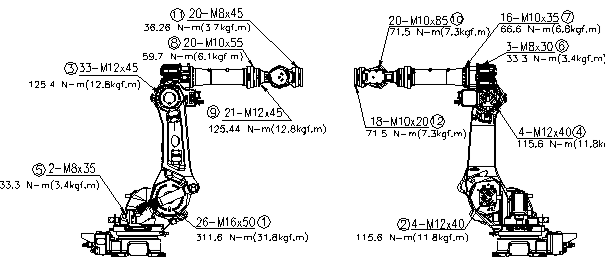

Figure 4.2Inspection part for main bolts [HS260/HH300]
