4.3. Inspection of Main External Bolts

4.3. Inspection of Main External Bolts



 The recommended bolt torque is shown in [Figure 4.1]

Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed.





Table 4‑3 Inspection part for main bolts

No.	Inspection parts	No.	Inspection parts
1	S axis motor assembly bolt	7	R1 axis MOTOR BASE
2	V axis motor assembly bolt	8	B axis motor assembly bolt
3	R2 axis motor assembly bolt	9	For second arm fixing
4	R2 axis MOTOR BASE	10	V axis MOTOR BASE
5	B axis MOTOR BASE	11	H axis motor assembly bolt
6	R1 axis motor assembly bolt	12	END EFFECTOR assembly bolt

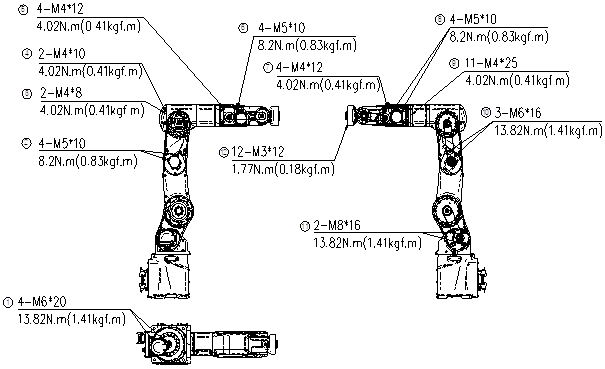

Figure 4.1Inspection part for main bolts
