4.3. Inspection of Main External Bolts

4.3. Inspection of Main External Bolts



The recommended bolt torque is shown in the picture below.

Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed



Table 4‑3 Inspection part for main bolts

No.	Inspection parts	No.	Inspection parts
1	H-axis reducer seal bolt	7	ARM PIPE seal bolt
2	H-axis motor seal bolt	8	R2-axis reducer seal bolt
3	V-axis reducer seal bolt	9	Grip assembly seal bolt
4	V-axis motor seal bolt	10	B-axis reducer seal bolt
5	Gas upper plate seal bolt	11	R1-axis reducer seal bolt
6	Wrist-axis motor seal bolt	12	End effect seal bolt

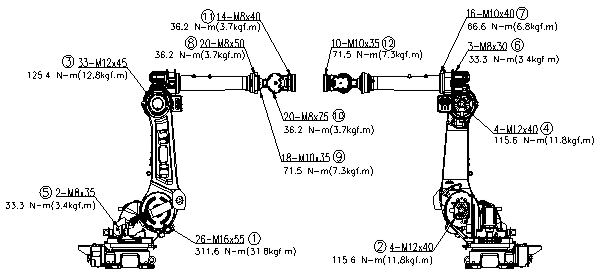

Figure 4.1 Inspection Part for Main Bolts
