2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope



Figure 2.3 Robot Dimension and Working Envelope (HC165L)

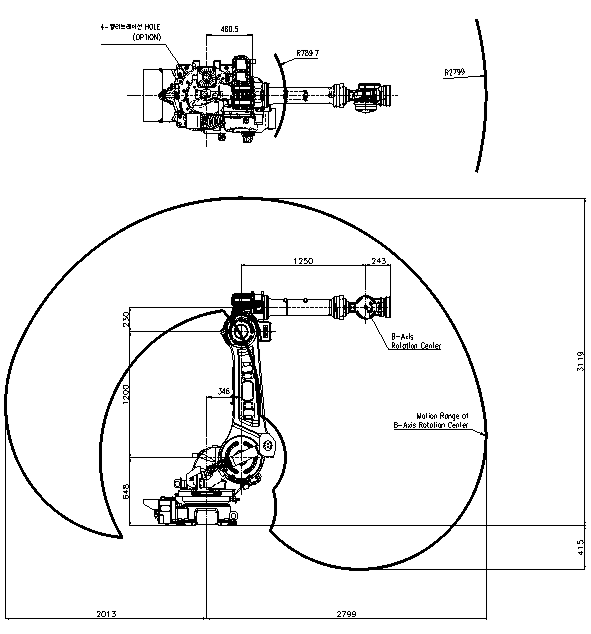

Figure 2.4 Robot Dimension and Working Envelope (HC200)
