4.1.1. T Axis Reducer

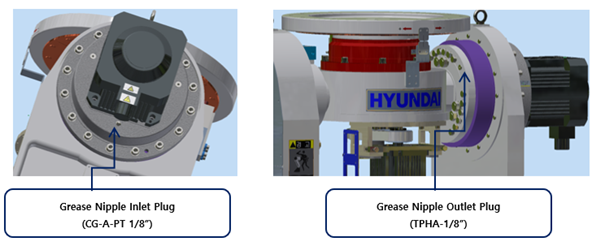

Figure 4.1 Grease Inlet and Outlet

Caution

If you inject the grease without removing the outlet plug, the grease may enter the motor, causing damage. The plug must be removed.

n Grease replenishment

① Remove the outlet plug.

② Inject the grease through the inlet by using the grease gun.

ü Grease type: Molywhite RE00

ü Grease injection amount: 50 cc

③ Clean the outlet with a cloth and assemble the plug wrapped with the seal tape back into its original position.

n Grease replacement

① Remove the outlet plug.

② Inject the grease through the inlet by using the grease gun.

ü Grease type: Molywhite RE00

ü Grease injection amount: 280 cc

③ Insert new grease until it comes out of the outlet. The new grease can be identified by color.

④ Clean the outlet with a cloth and assemble the plug wrapped with the seal tape back into its original position.
