3.3. Inspection of Key External Bolts
3.3. Inspection of Key External Bolts
A torque wrench must be used to carry out fastening with a proper torque and then marking with paint should be performed.
Table 3‑3 Key Bolts to Inspect
No. | Bolts to inspect | No. | Bolts to inspect |
1 | Mechanical interface attachment bolt | 7 | T axis reducer attachment bolt-1 |
2 | R axis reducer support attachment bolt | 8 | T axis reducer attachment bolt-2 |
3 | T axis motor cover bolt | 9 | Stopper attachment bolt |
4 | T axis motor base attachment bolt | 10 | Cable guide attachment bolt |
5 | R axis reducer attachment bolt | 11 | Stopper block attachment bolt |
6 | R axis motor BRKT attachment bolt |
|
|

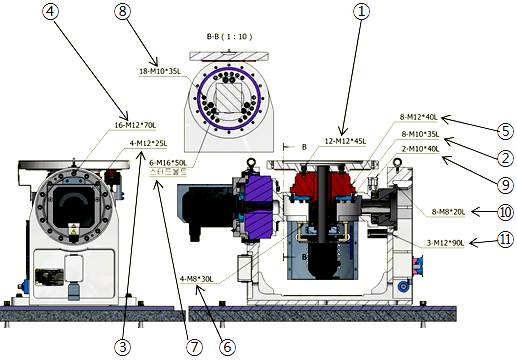

Figure 3.1 Key Bolts to Inspect
