2.1.  Names of Individual Parts



The names of individual parts of the main body are shown below in [Figure 2.1]

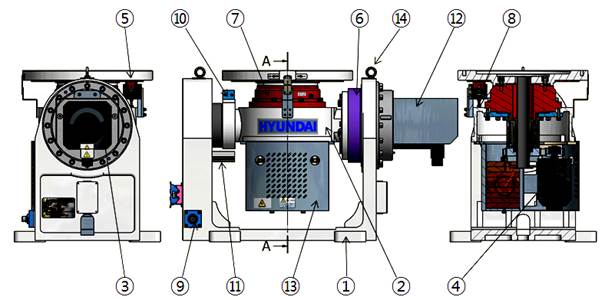

Figure 2.1 The names of individual parts of the main body



Table 2‑1 The names of individual parts of the main body

No.	Names of Individual Parts	No.	Names of Individual Parts
1	MAIN FRAME	8	EARTH UNIT
2	ROTATE FRAME	9	EARTH UNIT
3	T AXIS MOTOR	10	STOPPER
4	R AXIS MOTOR	11	STOPPER BLOCK
5	MECHANICAL INTERFACE	12	T AXIS MOTOR COVER
6	T AXIS REDUCER	13	R AXIS MOTOR COVER
7	R AXIS REDUCER	14	EYE BOLT
