3.3. Inspection of Key External Bolts
3.3. Inspection of Key External Bolts
A torque wrench must be used to carry out fastening with a proper torque, and then marking with paint should be performed.
Table 3-3 Key Bolts to Inspect
No. | Bolts to inspect | No. | Bolts to inspect |
1 | Mechanical interface attachment bolt | 5 | Earth lock cover attachment bolt |
2 | Reducer attachment bolt | 6 | Earth bush set screw |
3 | Power lock attachment bolt | 7 | Earth block attachment bolt |
4 | Motor plate attachment bolt | 8 | Bearing housing attachment bolt |

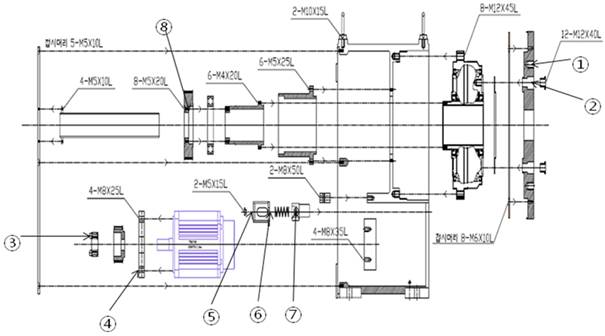

Figure 3.1 Key Bolts to Inspect
