2.1. Names of Individual Parts
2.1. Names of Individual Parts
The names of individual parts of the main body are shown below in [Figure 2.1].

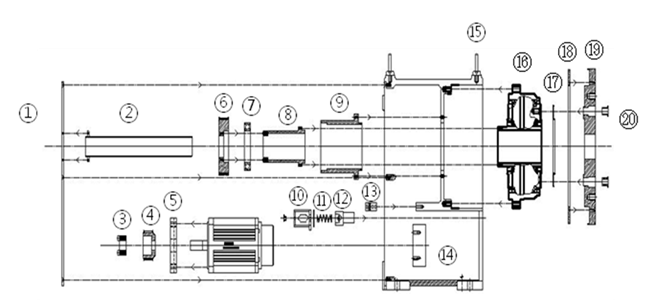

Figure 2.1 Names of Individual Parts of the Main Body
Table 2‑1 Names of Individual Parts of the Main Body
No. | Names of Individual Parts | No. | Names of Individual Parts |
1 | REAR COVER | 11 | SPRING |
2 | GUIDE PIPE | 12 | EARTH BLOCK |
3 | POWER LOCK | 13 | MOTOR SETTING PLATE |
4 | MOTOR PULLEY | 14 | MAIN FRAME |
5 | MOTOR MT`G PLATE | 15 | EYE BOLT |
6 | REDUCER PULLY | 16 | REDUCER |
7 | BEARING | 17 | EARTH PLATE |
8 | DESCRIPTION | 18 | EARTH ROUND PLATE |
9 | BEARING HOUSING | 19 | TURN PLATE |
10 | EARTH BLOCK COVER | 20 | EARTH BUSH |
