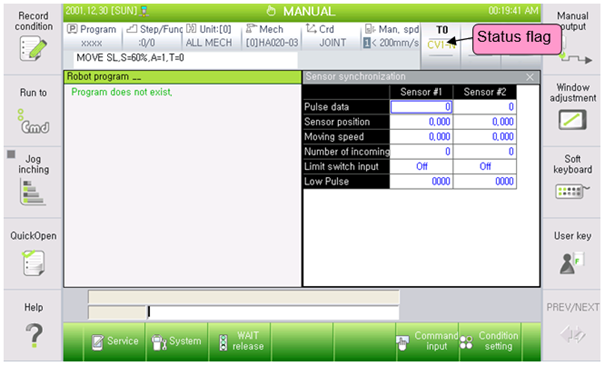

3.4.2. Status flag

3.4.2. Status flag​





n Sensor activation type

In case of a conveyor, 『CV1-N』, 『CV1-S』 and 『CV1-T』 strings will be generated for the normal situation, the simulation and the test individually. In case of a press, 『PR1-N』, 『PR1-S』 and『PR1-T』 strings are to be generated individually.



n Signal input status while the sensor is activated

If a signal is turned on while the sensor is activated, a string, which indicates the sensor activation status, will be generated in a way that the characters, which are constituents of the full string, are added up sequentially one by one to create the  full string.



Ex) When the conveyor in the 『Normal』activation

Conveyor activated: 『』 → 『C』 → 『CV』 → 『CV1』 → 『CV1-』 → 『CV1-N』

Conveyor stopped: Fixed as『CV1-N』

Ex) When the press in the 『Normal』activation

Press activated: 『』 → 『P』 → 『PR』 → 『PR1』 → 『PR1-』 → 『PR1-N』

Press stopped: Fixed as『PR1-N』



n Sensor synchronized playback on/off status

The string that indicates the sensor activation status will change in its color depending on the sensor synchronized playback on or off status.
