1.2.2. Method of Internal Setting

1.2.2. Method of Internal Setting



If the button on the workstation is pressed when the target workpiece is programmed, the program number applicable to this input is registered to reserve execution register and the program will be executed in this order.

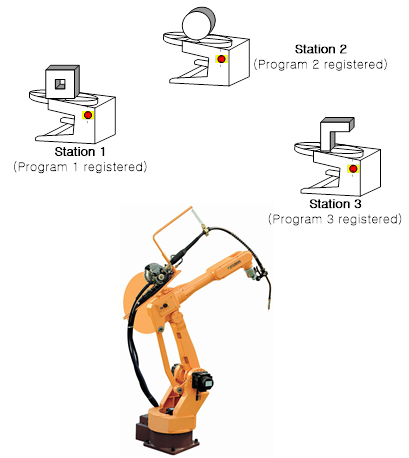

Figure 1.2Method by internal setting



When each workpiece is set on 3 workstations as shown in the above figure, and the buttons on workstations 1, 2 and 3 are pressed, the programs 1, 2 and 3 are registered to the Program Reservation Execution Register.



When work no. 1 is ready, the operator presses the button (Input), and then presses the start button of the control panel to run program no. 1. With program no. 1 running, prepare work no. 2 and press the button (Input) to put program no. 2 in the program reservation register. Program no. 2 starts after the completion of program no. 1.  If the button (Input) is pressed for program no. 2 after program no. 1 has completed execution, the start button must be pressed again
