1.3. Painting application functions



The painting application functions of the Hi5a controller is carried out as the output of the “Atomize on” and the “Spray on” signals according to the PAINT command.

To ensure the painting quality, a painting device with the appropriate values of painting quality parameters (atomization, pressure, high voltage, ejection volume, etc.) should be selected and used to meet the painted object and the painting pattern, which are realized by utilizing the process PLC, the HMI, and the Hi5a controller.

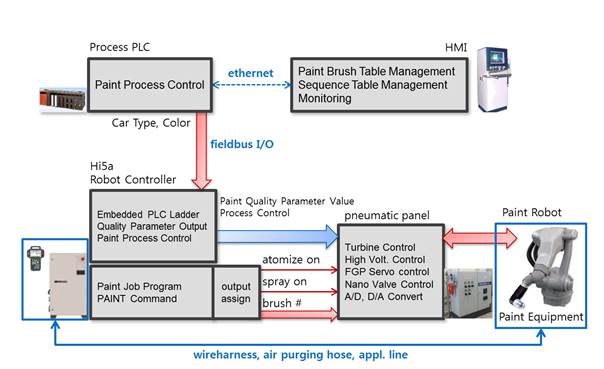

Figure 1.1 shows the general block diagram of the painting process robot system. Table 1-1 describes the factors that determine the painting quality relating to the robot and the painting device.

Figure1.1 System block diagram

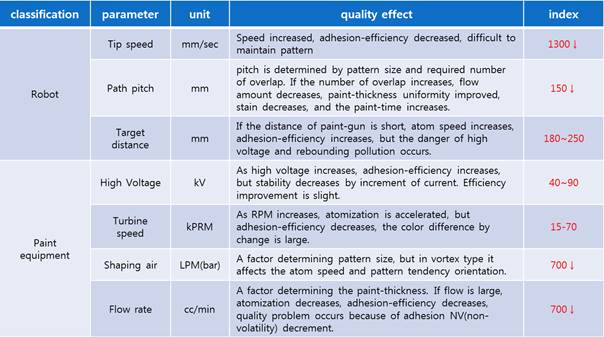

Table 1‑1 Parameters determining painting quality
