The user pattern defining function is for the user to create a pattern by arranging packages arbitrarily (Figure 3.19). Different from the auto pattern creating function, this function makes it possible to create a pattern by arranging different packages. The following show the order of using the function.



(1)   Select a pallet that is to be placed on the floor.

(2)   Select a package to load.

(3)   Configure a pattern by using the adding, direction shifting, and deleting functions.

(4)   Place the created pattern on the center by using the pattern editing function, including the clockwise or anticlockwise direction.

(5)   Define the patterns for the odd layer and the top layer by using the same methods as shown above.

(6)   You can use the same pattern as the odd layer by using the (*) odd layer copy function.

(7)   Designate the loading layer count.

(8)   Designate based on the layer sagging compensation or slip sheet insertion

(9)    Press the Save button *1) and designate the pattern name to save so the pattern registration will be completed.

*1 )The saving function will be enabled only when the data for the odd layer, even layer, and top layer are filled out completely.

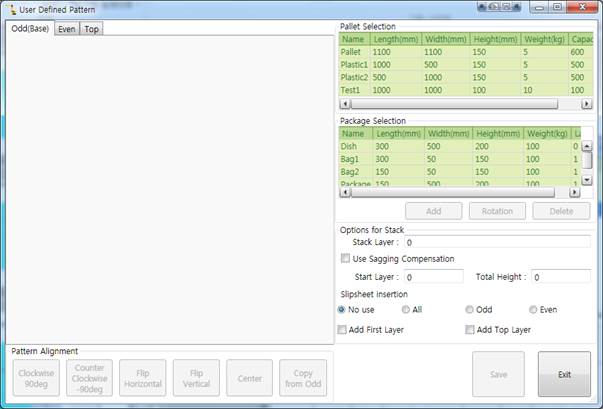

Figure 3.19 User pattern defining menu
