4.1.1.Main Screen

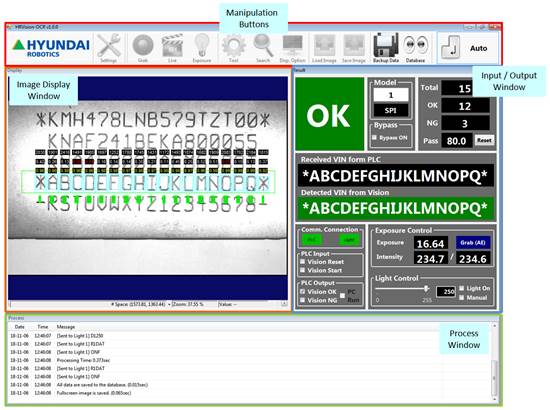

Upon entering the correct serial key after running the program, the following screen is displayed:

The HRVision-OCR screen consists of four windows. Each menu of control buttons opens an independent setting window.

The functions of individual windows are shown in the following table:

Manipulation Buttons	Settings, image recording, checking, and auto operation menus are provided to control HRVision-OCR.
Image Display Window	Live or grabbed image is displayed with the character recognition result.
Process Window	Hyundai robot controller, communication with lighting controller, states, and progress are displayed.
Input/Output Window	The state of connection and data between the vision system and PLC and lighting controller, model information, and character recognition results are displayed.
