3.2.  Set Network Adapter

3.2.  Set Network Adapter



Set the properties of the network adapter to connect a camera.

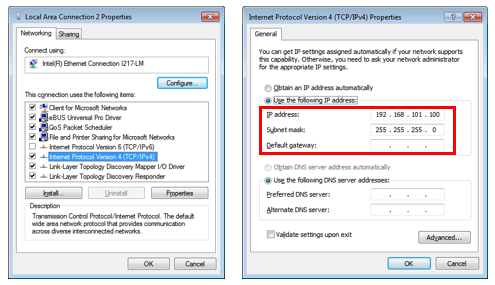

Select Internet Protocol Version 4 in the Network Connection of Control Panel, and then click the [Property] button. Set the IP address and Subnet mask according to the configuration.

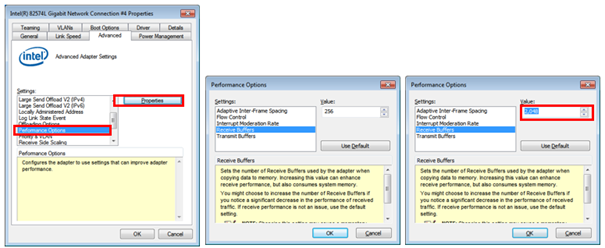

Click the [Configure] button and select “9014 Bytes”for the [Jumbo Packet], as follows:

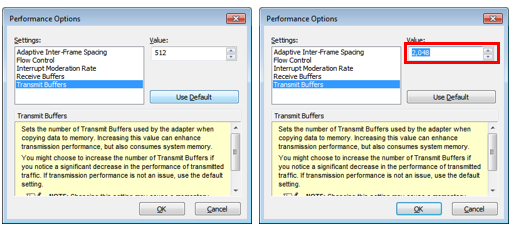

Set [Receive Buffers] and [Transmit Buffers] to 2048, respectively.
