1.3. Appearance of the BD525 board

1.3. Appearance of the BD525 board​

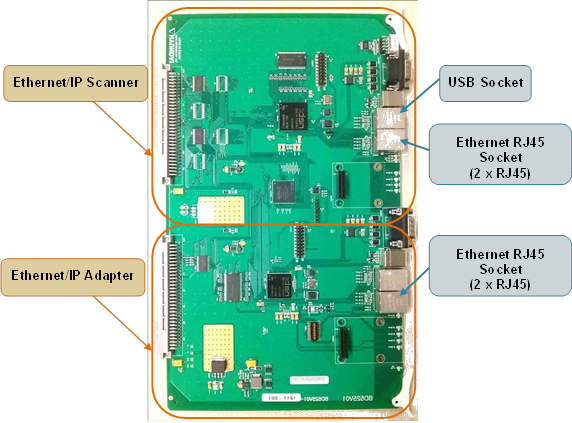

Figure 1.2 BD525 Ethernet/IP communication board





The BD525 Ethernet/IP board supports 1 channel of Ethernet/IP scanner, which is equivalent to the existing fieldbus master, and 1 channel of Ethernet/IP, which is equivalent to the existing fieldbus slave.



In case of Ethernet/IP scanners, network configuration requires separate configuration software, SYCON.net. SYCON.net and the BD535 board are to be connected through USB.



In case of Ethernet/IP adapters, separate software is not needed. IP address and size of input and output data, for example, can be set using a teach pendant.



When required, some parts of the Ethernet/IP scanner or of the Ethernet/IP adapter may not be assembled during the production process.
