4.1. Grease Pouch Change Type

4.1. Grease Pouch Change Type​

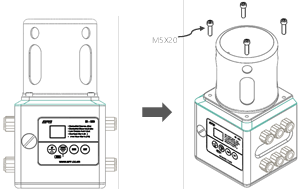

1.    Completely loosen the fastened M5 wrench bolts at four locations on the protective cover.

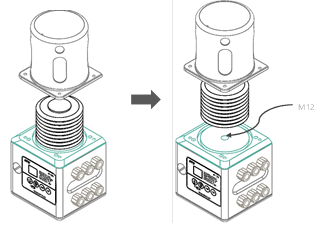

2.    Open the protective cover, and replace the grease pouch.



3.    Press and close the protective cover and then fasten the M5 wrench bolts at four locations.



* The protective cover is a spring-push type. Because the spring will push the piston when replacing the protective cover, it is best to replace it with one hand pressing it.
