3.6.3. Dimension of Controller
3.6.3. Dimension of Controller

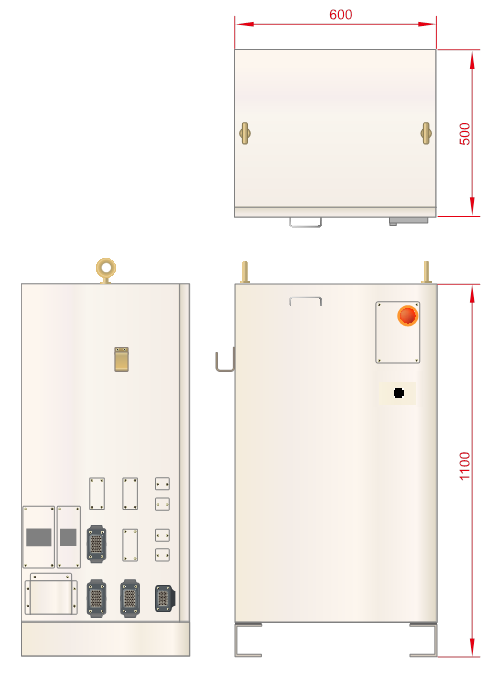

Figure 3.16Dimension of Hi5a-C20 (Unit: mm)

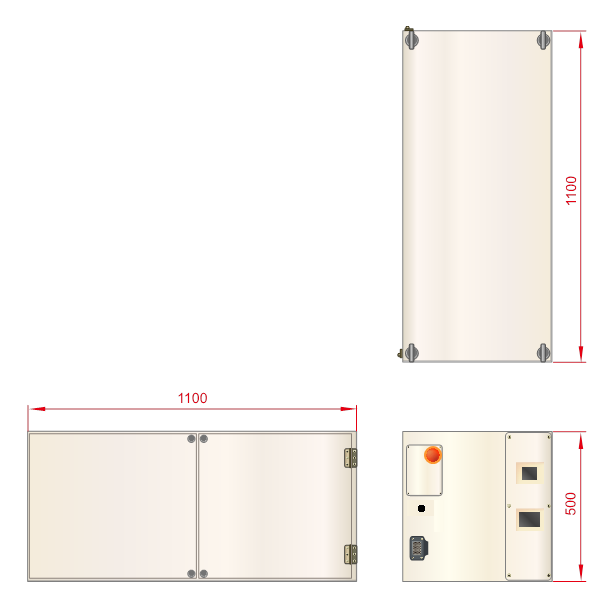

Figure 3.17 Dimension of Hi5a-C10 Controller (Unit: mm)

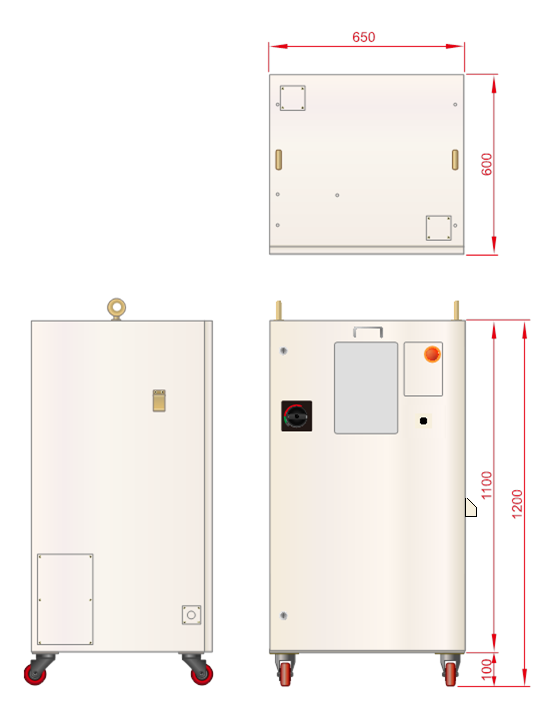

Figure 3.18 Dimension of Hi5a-N* Controller (Unit: mm)
Figure 3.19 Dimension of Hi5a-N80 Controller (Unit: mm)
