5.3.1. Outline

5.3.1. Outline



The Public DIO board can be used for interface or configuration with various devices through the digital IO port. The specification of the basic board is as follows.



l Digital input (Photocoupler type) 32 points (4 ports)

l (+/-) Two-way digital output (Photo MOS type) 32 points (4 ports)

l 1Mbps CAN communication

l Input/Output connector: MDR-type connector (3M)

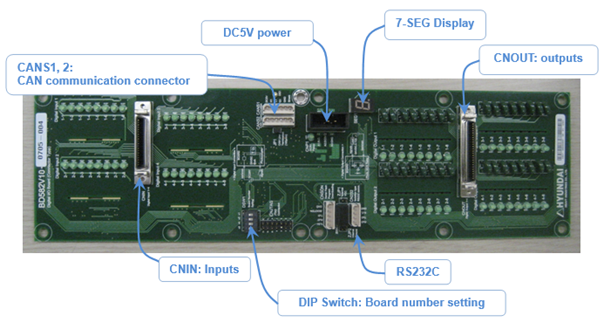

Figure 5.10 Public IO Board (BD582)
